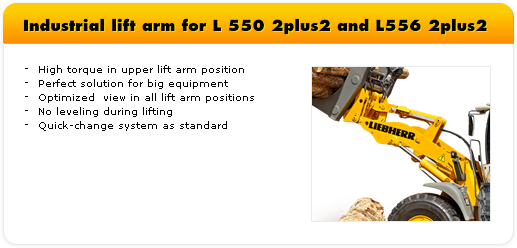

New industrial lift arm for Wheel loaders L 550 2plus2 and L 556 2plus2
At the 2010 ‘Bauma’ construction-industry trade fair Liebherr is introducing a new industrial lift frame for the two wheel loader models L 550 2plus2 and L 556 2plus2. In addition to the standard Z-pattern kinematics used for regular work, the industrial lift frame has special kinematics to suit heavy attachments such as a log grab or other industrial equipment. The geometry of this lift frame permits high levels of torque and force to be applied at unusual lift heights. Weight distribution has been optimised to permit the largest possible payloads to be handled. The industrial lift frame has a hydraulic quick-change system as standard equipment, so that items from Liebherr’s extensive programme of optional attachments can be picked up and detached quickly and safely. Precise parallel movement over the entire lifting range with no need to correct the loader’s position and an excellent view of all work areas are features that promote safe, stress-free working with this device.
Payload
L 550: 6,300 kg
L 556: 6,400 kg
Grapple diameter
L 550: 1.8 m²
L 556: 2.4 m²
Operating weight
L 550: 18,890 kg
L 556: 19,550 kg
Engine Output
L 550: 130 kW / 177 HP
L 556: 140 kW / 191 HP
Economy and environmental protection
Compared to conventional transmission, the Liebherr driveline achieves a reduction in fuel consumption for wheel loaders of 25 % or more! Five litres less fuel per operating hour signifi cantly reduce operating costs and environmental pollution.
Comfort, convenience, and safety
The ultra-modern cab design with advanced ergonomics, continuously variable Liebherr driveline with 2plus2 gearbox for uninterrupted tractive force, standard Liebherr ride control, optimum weight distribution and easy service access thanks to unique engine installation position lead to extraordinary overall comfort.

All the travel and working movements of the wheel loader are controlled by just one operating lever. The left hand remains on the steering wheel all the time; the driver no longer needs to reach around, and can keep the machine safely and reliably under control all the time.

Reliability
All the materials used in Liebherr wheel loaders have passed long-term tests to ensure that they match up to Liebherr’s exacting standards even in the toughest conditions. The mature concept and proven quality make Liebherr wheel loaders to the benchmark for reliability.
Performance

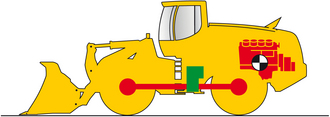

The Liebherr driveline allows the Liebherr diesel engine to be mounted lengthways in the rear, with the output shaft facing backwards. Compared to conventionally driven wheel loaders, the operating weight is much lower, the tipping load is higher, and more material can be moved each operating hour.
