Liebherr Wheel Loader L 580 2plus2 LogHandler

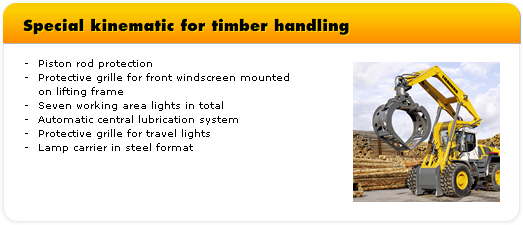

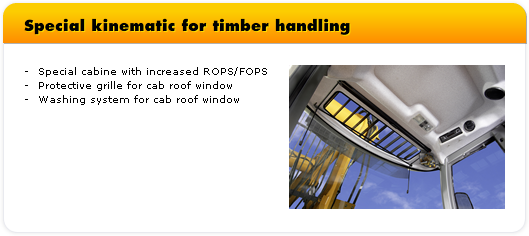

The Liebherr L 580 2plus2 wheel loader in LogHandler format has been developed especially for operations in the timber handling sector. The newly designed lifting gear means that the logs can be taken up from above at a great height, which makes the LogHandler particularly well-suited for work such as the loading and unloading of trucks or feeding bark removal and sorting installations. The grab can be rotated through 360° as well as pivoting forwards and backwards. Depending on the requirement, a very wide range of shapes and sizes of grab and grapple tools are available. The driver’s cab has a roof window, fitted as standard with a protective grille, to provide the best possible view upwards, and the protective grille for the front windscreen is integrated directly into the lifting gear.
Payload
8,470 kg - 8,790 kg
Grapple diameter
3.2 m² - 3.6 m²
Operating weight
33,450 kg - 33,860 kg
Engine output
200 kW / 272 HP
Economy and environmental protection
Compared to conventional transmission, the Liebherr driveline achieves a reduction in fuel consumption for wheel loaders of 25 % or more! Five litres less fuel per operating hour signifi cantly reduce operating costs and environmental pollution.
Comfort, convenience, and safety
The ultra-modern cab design with advanced ergonomics, continuously variable Liebherr driveline with 2plus2 gearbox for uninterrupted tractive force, standard Liebherr ride control, optimum weight distribution and easy service access thanks to unique engine installation position lead to extraordinary overall comfort.

All the travel and working movements of the wheel loader are controlled by just one operating lever. The left hand remains on the steering wheel all the time; the driver no longer needs to reach around, and can keep the machine safely and reliably under control all the time.

Zuverlässigkeit
Alle Materialien wurden in intensiven Langzeittests geprüft und erfüllen selbst unter härtesten Bedingungen den hohen Liebherr-Qualitätsstandard. Das ausgereifte Konzept und die bewährte Qualität machen die Liebherr-Radlader zum Maßstab für Zuverlässigkeit.
Productivity
The Liebherr driveline allows the Liebherr diesel engine to be mounted lengthways in the rear, with the output shaft facing backwards. Compared to conventionally driven wheel loaders, the operating weight is much lower, the tipping load is higher, and more material can be moved each operating hour.
