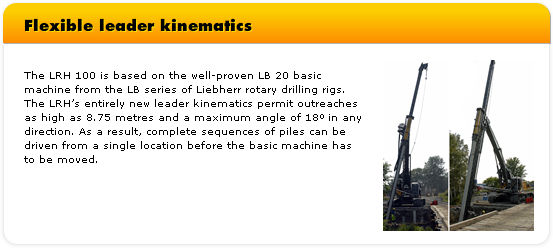

The LRH 100 is based on the well-proven LB 20 basic machine from the LB series of Liebherr rotary drilling rigs. The LRH’s entirely new leader kinematics permit outreaches as high as 8.75 metres and a maximum angle of 18° in any direction. As a result, complete sequences of piles can be driven from a single location before the basic machine has to be moved.

For the new LRH 100 Liebherr is again offering an extensive range of high-performance attachments, which ensure that output from the basic machine is optimally translated into effective work. The LRH 100’s adaptable hammer concept enables hammer weights between 2.5 and 7 tons to be installed and in this way matched ideally to the material being driven: wooden, concrete or heavy steel piles.

The LRH 100 can be moved from place to place complete, without removing the hammer; this greatly reduces the time needed to begin work on the construction site. The machine has a transport weight of only 66 t, a transport length of 16.5 m and a height of 3.4 m. Since the basic machine is so compact, with a transport width of only 3.0 m, movements from one job-site to the next can be performed quickly and at low cost.
